JIS G3460 Alloy Steel Pipe for low temperature service

Thông tin cơ bản
Nguồn gốc: Trung Quốc
Hàng hiệu: TORICH
Số mô hình: JIS G3460
chi tiết đóng gói: Trong hộp gỗ hoặc bó lục giác trong bao bì có thể đi biển
Thời gian giao hàng: 35-45 ngày
Điều khoản thanh toán: L / C, D / A, D / P, T / T, Western Union, MoneyGram
Thông tin chi tiết
Tên sản phẩm: Ống thép hợp kim JIS G3460 cho dịch vụ nhiệt độ thấp. Mẫu số: JIS G3460
Kỹ thuật: Vẽ lạnh Xử lý bề mặt: Dầu
Kiểu: Liền mạch Hợp kim hay không: không hợp kim
Hình dạng phần: Tròn Ứng dụng: Đối với nồi hơi, bộ quá nhiệt, ống dẫn hơi của nồi hơi

Mô tả sản phẩm

JIS G3460 Alloy Steel Pipe for low temperature service

JIS G3460 STPL380, STPL450, STPL690 Chemical Composition:

Steel Grade Chemical Composition %
C Si Mn P S Ni
STPL 380 0.25 max. 0.35 max. 1.35 max. 0.035 max. 0.035 max.
STPL 450 0.18 max. 0.10~0.35 0.30~0.60 0.030 max. 0.030 max. 3.20 ~ 3.80
STPL 690 0.13 max. 0.10~0.35 0.90 max. 0.030 max. 0.030 max. 8.50 ~ 9.50

-JIS G3460 STPL380, STPL450, STPL690 Mechanical Property:

Steel Grade Tensile strength

Yield point or proof

stress

Elongation %

kgf/mm2

{N/mm2}

kgf/mm2

{N/mm2}

No. 11 or No. 12 test piece No. 5 test piece No. 4 test piece
Longitudinal Transverse Longitudinal Transverse
STPL 380 39 {382}min. 21{206} min. 35 min. 25 min. 30 min. 22 min.
STPL 450 46{451} 25{245} min. 30 min. 20 min. 24 min. 16 min.
STPL 690 70{686} 53{520} min. 21 min. 15 min. 16 min. 10 min.

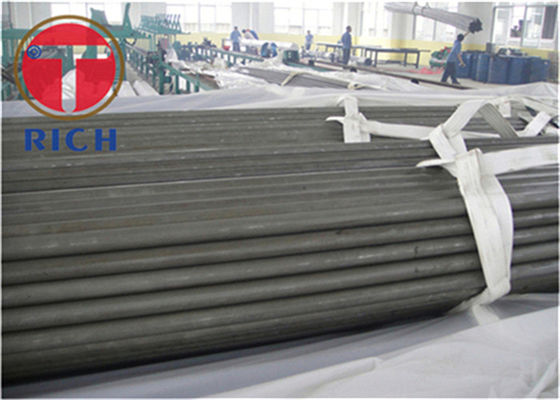

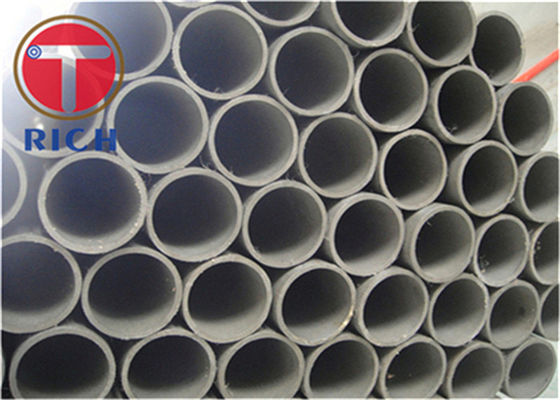

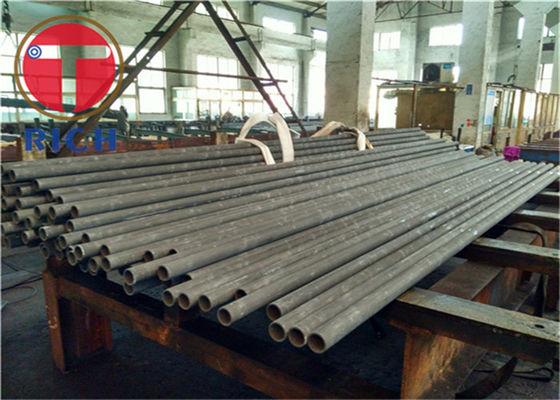

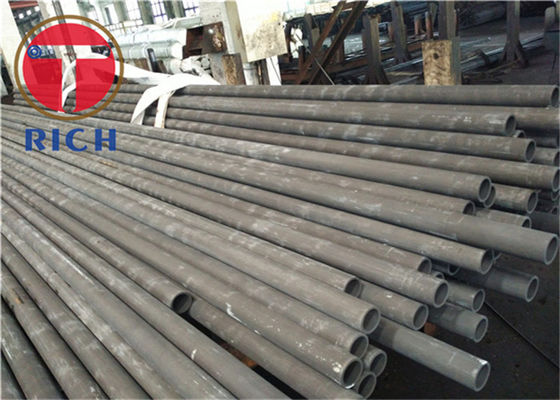

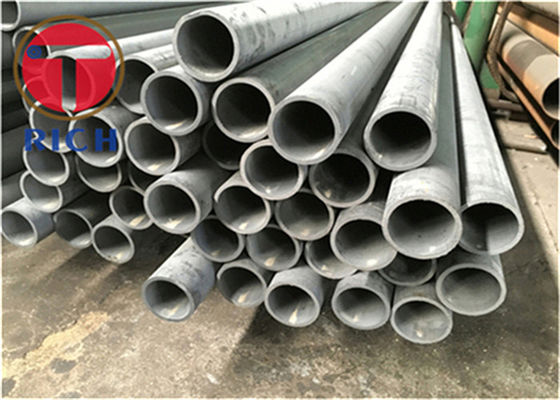

Product Pictures:

JIS G3460 Alloy Steel Pipe for low temperature service 0



JIS G3460 Alloy Steel Pipe for low temperature service 1





Company Introduction:

JIS G3460 Alloy Steel Pipe for low temperature service 2

Packaging and Delivery:

JIS G3460 Alloy Steel Pipe for low temperature service 3

FAQ:

Q: Are you trading company or manufacturer?

A: We are a professional steel pipes materials manufacturer.



Q: How long is your delivery time?

A: Generally it takes 7-14 days if the goods are in stock or 30-60 days if there is no stock, this mainly depends on quantity.



Q: Do you provide free sampleas?

A: Yes, we could offer the sample for free charge but need pay the cost of freight.



Q: What is your terms of payment?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us.
