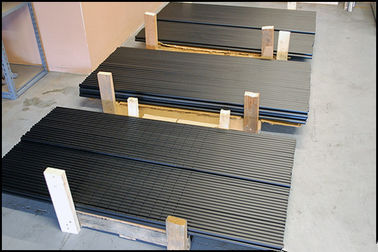

Ống thép hợp kim SA213 T5 T9 T11 T12 T22, Ống trao đổi nhiệt bằng thép carbon
Chi tiết sản phẩm
alloy steel seamless tube
,seamless alloy steel pipe
Thép hợp kim loại T5 T9 T11 T12 T22
Các ống trao đổi nhiệt bằng thép hợp kim SA213
| Thép hạng | C | Thêm | P | S | Vâng | Cr | Mo. |
|
| tối đa | tối đa | tối đa | tối đa | tối đa | phút |
|
| T5 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.5 | 4.0-6.0 | 0.45-0.65 |
| T9 | 0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.25-1.00 | 8.0-10.0 | 0.90-1.10 |
| T11 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 1.0-1.50 | 0.44-0.65 |
| T12 | 0.05-0.15 | 0.30-0.61 | 0.025 | 0.025 | 0.50 | 0.80-1.25 | 0.44-0.65 |
| T21 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50-1.00 | 2.65-3.35 | 0.80-1.06 |
| T22 | 0.05-0.15 | 0.30-0.60 | 0.025 | 0.025 | 0.50 | 1.90-2.60 | 0.87-1.13 |
| Thép hạng | Độ bền kéo | Sức mạnh năng suất | Chiều dài | Khó nhất. |
|
| |
| Min.ksi [Mpa] | Min.ksi [Mpa] | % | Brinell/Vickers | Rockwell |
|
|
|
| T5b | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| T9 | 60[415] | 30[205] | 30 | 179HBW/190HV | 89HRB |
|
|
| T12 | 60[415] | 32[220] | 30 | 163HBW/170HV | 85HRB |
|
|
| T91 | 85[585] | 60[415] | 20 | 250HBW/265HV | 25HRC |
|
|
| T92 | 90[620] | 64[440] | 20 | 250HBW/265HV | 25HRC |
|
|
-
Phụ tùng ô tô ASTM A513 cán thép cán nguội với sản xuất DOM
Auto Parts ASTM A513 Welded Steel Tubes with DOM production ASTM A513 Electric-Resistance-Welded Carbon and Alloy Steel Mechanical Tubing Applications: for Machinery, Mechanical Engineering 1. Standard: ASTM A513 cold rolling welded precision steel tubes 2. Steel Grade: SAE1010, SAE1020, other materials upon agreement with customers. 3. Production method: Cold rolling on the weled steel tubes, to reach high accuracy on the OD and WT tolerance 4. Size range: O.D.:6-350mm W.T. -
Ống thép ủ sáng đường kính 25 mm cho các hệ thống thủy lực
EN10305-1 E235 E355 NBK Bright Annealing Precision Steel Pipes for Hydraulic Systems EN10305-1 NBK Bright Annealed Precision steel pipes for Hydraulic system OD:4-80 (mm) WT0.5-10 (mm) Length 1000-12000mm Product name: Seamless Precision Steel Pipe Application: for hydraulic systems precision steel pipes for Hydraulic system OD (mm) WT (mm) Length (mm) 4 0.5 5800-6000 4.0 1.0 5800-6000 5.0 1.0 5800-6000 6.0 1.0 5800-6000 6.0 1.5 5800-6000 8.0 1.0 5800-6000 9.5 0.89 5800-6000 -
Ống thép photphat đen chính xác liền mạch cho các hệ thống thủy lực
Steel Pipes with high precision for Hydraulic Systems with Black Phosphating surface Black Phosphated Hydraulic Tubes with High Precision and tight tolerance, the tubes are produced by precision cold drawn and cold rolling, then bright annealed in a protected atmosphere, afterwards it is blackphosphated on the surface Production process: DIN series tubes, cold drawn and bright annealed precision seamless steel tube is used as the tube to be phosphated. The phosphorization is -
Ống thép mạ kẽm chính xác liền mạch DIN2391 EN103052 ST35.0 ST37
Precision Seamless Galvanized Steel Tubes DIN2391 EN103052 ST35.0 ST37 Production Process: Cold rolling by Cold pilger machine and Cold rolling machine,galvanized and zinc plated could be applied. Cold Rolled and Galvanized Steel Tube Production process: DIN highly accurate, cold rolled and bright seamless steel tube is used as the tube to be galvanized. The outer wall of tube is electroplated. The caps are covered at two ends of tube to prevent from the dust. Main Features:
