Ống trao đổi nhiệt

Great Heat Conduction Performance Tube To Tube Sheet Orbital Welding Tubesheet Tubesheet is a kind of fitting that drills a hole slightly larger than the outer diameter of the pipe on the circular steel plate, penetrates the pipe, welds and fixes it. In the calculation of fixed tubesheet, the axial stress of shell, the axial stress of heat exchange tube and the pull-out force Q between heat exchange tube and tubesheet are calculated according to various working conditions

16Mn Heat Exchanger Tube Sheet For Pressure Vessel And Steam Turbine Product Name: steel pipe flange cover Executive standard: GB / JB / ANSI DIN ASME Product features: If the tubesheet flange is made of other materials, it will not be fused with stainless steel, and there will be small cracks in the middle If the tubesheet flange is made of other materials, it will not be fused with stainless steel, and there will be small cracks in the middle. The tubesheet flange shall be

ASTM A516 Gr.70 Heat Exchanger Tube Sheet For Tubular Heat Exchanger ASTM A516 Gr.70 Chemical composition: C≤0.30 Mn:0.79-1.3 P:≤0.035 Si:≤0.13-0.45 Different materials shall be used according to different service environments: 1. Generally, Q345R container plate, such as primary and secondary pressure vessels, shall be used. There is no flow of corrosive medium, and carbon steel composite plate can be used. 2. In the environment of strong acid, high pressure, high temperatur

The Figure 8 Blind Plate Supporting And Fixing Tubular Tubesheet Heat Exchanger The figure 8 blind plate is shaped like figure 8. One end is a blind plate and the other end is a throttling ring, The spectacle blind is a solid circle with a handle, which is used for systems that are normally isolated. but the diameter is the same as the pipe diameter of the pipeline and does not play a throttling role. How To Use The spectacle blind plate is easy to use. When isolation is

ASTM A213 TP321 Seamless Heat Exchanger Tubes Bright annealed stainless steel tubes as per following standard: ASTM A213 ASTM A269 EN10216-5 TC-1 Tolerance:D4/T3 (±0.5%,±0.1 min)/(±10%,±0.2 min) NDT Tests:Eddy Current or Hydraulic Test or UT Heat treatment on tubes: Bright Annealed stainless seamless tube Quality Assurance: ISO 9001&PED 97/23/EC certificated with 100% traceability on all instrument tubes and material test reports(EN 10204/3.1B)accompany every shipment upon

ASTM A213 TP321 25.4X2.0 Seamless Heat Exchanger Tubes What kind of coiled tubing we can produce? unit:mm OD 4.76 WT 0.51 0.71 0.89 1.24 OD 6 WT 1 1.5 OD 6.35 WT 0.51 0.71 0.89 1.24 1.65 OD 7.94 WT 0.71 0.89 1.24 1.65 OD 9.53 WT 0.71 0.89 1.24 1.65 OD 10 WT 1 1.5 2 OD 12 WT 1 1.5 OD 12.7 WT 0.71 0.89 1.24 1.65 OD 14 WT 1 1.5 2 OD 15.88 WT 0.71 0.89 1.24 1.65 2.11 OD 16 WT 1 1.5 2 OD 19.05 WT 1 1.24 1.65 2.11 OD 25.4 WT 1.24 1.65 2.11 2.54 OD 31.8 WT 1.24 1.65 2.11 2.54 OD 38

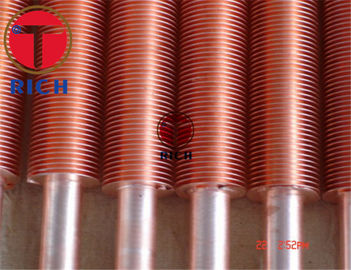

1 Inch-2 Inch L/LL/LK Fin Tube L Fin Tube Heat Exchanger Fin Tube Heater Aluminum K foot Fin Tube L finned tubes, LL doubke L finned tubes, KLfinned tubes Material : Carbon steel ,Stainless Steel ,copper steel etc. Fin material:Aluminum,copper Fin thickness: Min 300μm -800μm This type of fin has a knurled L shape base and is fixed by pressure on the tube. Production method : The fin strip is folded into an L shape and spirally wound tightly under the action of tension on the

High Heat Transfer Coefficient Extruded Finned Tube And Fin Radiator Heat Exchanger Tubes The finned tube adopts the form of base tube covering aluminum tube, (the base tube can be carbon steel, stainless steel, copper) through machine extrusion to form the fin, the base of the fin is close to the outer wall of the tube, with high heat transfer coefficient and excellent heat transfer performance. Details: Maximum Working Temperature 545 Fin Materials Aluminium Base Tube

TORICH ASTM A213 304 19.05x1.65 Heat Exchanger Tubes What kind of coiled tubing we can produce? unit:mm OD 4.76 WT 0.51 0.71 0.89 1.24 OD 6 WT 1 1.5 OD 6.35 WT 0.51 0.71 0.89 1.24 1.65 OD 7.94 WT 0.71 0.89 1.24 1.65 OD 9.53 WT 0.71 0.89 1.24 1.65 OD 10 WT 1 1.5 2 OD 12 WT 1 1.5 OD 12.7 WT 0.71 0.89 1.24 1.65 OD 14 WT 1 1.5 2 OD 15.88 WT 0.71 0.89 1.24 1.65 2.11 OD 16 WT 1 1.5 2 OD 19.05 WT 1 1.24 1.65 2.11 OD 25.4 WT 1.24 1.65 2.11 2.54 OD 31.8 WT 1.24 1.65 2.11 2.54 OD 38.1
