Ống thép ô tô

Double Wall Galvanized Bundy Tube With Zinc Coating For Automobile Brake 1. Standard GM123M, GM124M, TS7600G, GB 11258-89 3. Steel Grade/Steel Material/Steel Number: Low carbon steel, such as SPCC BLD BLC 3. Raw Material: Cold rolled low carbon steel strip 4. Characteristic: Good Surface Quality, Uniform coating No coating burr Stable quality Excellent corrosion resistance TORICH QUALITY ASSURANCE 5. Application: Brake tube on automobile 6. Mechanical properties: Tensile

TORICH Double Wall Bundy Tube For Brake System SAEJ526 Nylon/Galfan Coating 1. Standard: AEJ526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems ASTM A254 Copper-brazed steel tubing 2. Steel GradeBHG1,SPCC,SPCD, SPCEN, ST14, ST15, ST16,DC04, DC05, DC06 3. Heat TreatmentBK or NBK 4. Production ProcessTube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere- Cleaning-- Leakage detection– Zinc/Copper

TORICH SAEJ526PVF/ Copper Coating Single WallBundy Tube For Brake System 1. StandardSAEJ526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems ASTM A254 Copper-brazed steel tubing 2. Steel GradeBHG1,SPCC,SPCD, SPCEN, ST14, ST15, ST16,DC04, DC05, DC06 3. Heat TreatmentBK or NBK 4. Production ProcessTube welding– Cold drawing (reduce diameter)– Annealing in Protected Atmosphere- Cleaning-- Leakage detection– Zinc/Copper Plating

TORICH With Zinc Coating For Automobile Brake Double Wall Galvanized Bundy Tube 1. Standard GM123M, GM124M, TS7600G, GB 11258-89 2. Steel Grade/Steel Material/Steel Number: Low carbon steel, such as SPCCBLDBLC 3. Raw Material: Cold rolled low carbon steel strip 4. Characteristic: Good Surface Quality, Uniform coating No coating burr Stable quality Excellent corrosion resistance TORICH QUALITY ASSURANCE 5. Application: Brake tube on automobile 6. Specifications: OD(mm) OD

SAE J526 PVF/ Copper Coating Brake System Single Wall Bundy Tube 1.Standard SAE J526 Welded low-carbon tubing EN10305-6 Welded cold drawn tubes from hydraulic and pneumatic power systems ASTM A254 Copper-brazed steel tubing 2. Steel Grade BHG1, SPCC, SPCD, SPCEN, ST14, ST15, ST16, DC04, DC05, DC06 3. Heat Treatment BK or NBK 4. Specification O D/ mm 4 4.2 4.76 6 6.35 7.8 8 9.52 W T 0.5-1.0mm (0.5-0.7mm common WT) Tolerance ±0.05mm Length 180Kg/coil; 700-1000m/coil; per

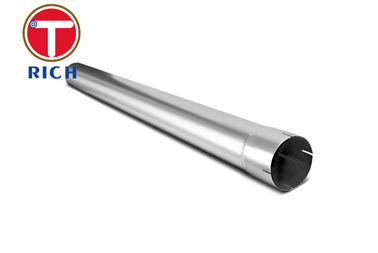

DIN2391 St35 St45 St52 High Precision Mechanical and Automobile cold drawn Seamless Steel Tube Seamless Steel Tubes for Mechanical and Automobile usage for Backbone of Automobile and rear axle tube, manufacturing and processing of precision equipments, instruments and apparatus. Production Standard, Grade, Steel No: DIN2391 St35 St45 St52 ASTM A519 1010, 1020, 1025, 1035, 1045 ASTM A513 1010, 1020, 1025, 1035, 1040 BS6323 CFSCFS3ACFS4-11 EN10305-1 E215E235E355 JIS G 3441

Carbon and Alloy Steel Mechanical Tubing Automotive Steel Tubes from TORICH Products Information: Size Range: OD: 4.0-350mm WT:0.5-50mm Length: max 12000mm Thickwall Steel Tube is our strength and regular production montly, mainly for machinery and engineering parts for our customers. Steel Grade/Steel Material: Steel Grade and Chemical Compositions: Steel C Mn P S Si Cr Mo Grade max max max max min 1008 0.10 0.30-0.50 0.040 0.050 1010 0.08-0.13 0.30-0.60 0.040 0.050 1018 0

Cold Drawn Seamless Precision Steel Tube for Auto Exhaust System Stainless Steel Cooling Coil/Condenser Coil Pipe Seamless tube heat exchanger stainless steel coil pipe Product Name Cold Drawn Seamless Precision Steel Tube for Auto Exhaust System Material Carbon steel Technique Cold Drawn Size O.D 3.18-18mm ; W.T: 0.3-1.3mm Standard GB/T 24187 Grade Q235 Q195 Surface Pickling, annealing, polishing, bright. Test Content analyzing; Metallographic test; Mechanical property test;

Products Description TORICH J524 Seamless Low Carbon Steel Tubing Annealed for Bending and Flaring Standard SAE J524 Material J524 Low Carbon Steel Size WT: 1-15mm; OD: 6-88.9mm; Length: Customer's Requirements Applications For Bending and Flaring to auto parts Test Tension Test, Flaring Test, Flange Test, Reverse Test, Hardness Test, Hydrostatic or Nondestructive Electric Test etc Advantage Cutting For Customer Good Packing with Pallet Better Concentricity Chemical
